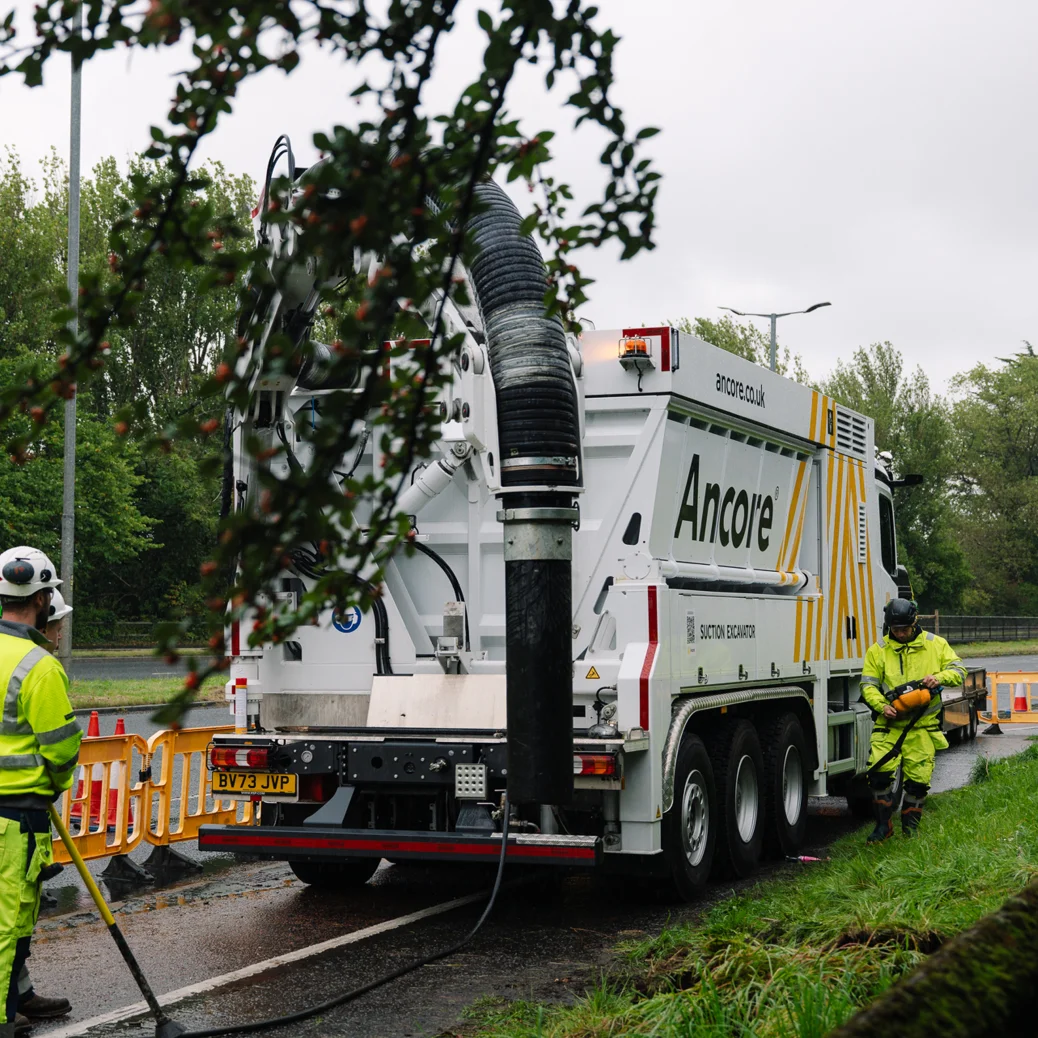

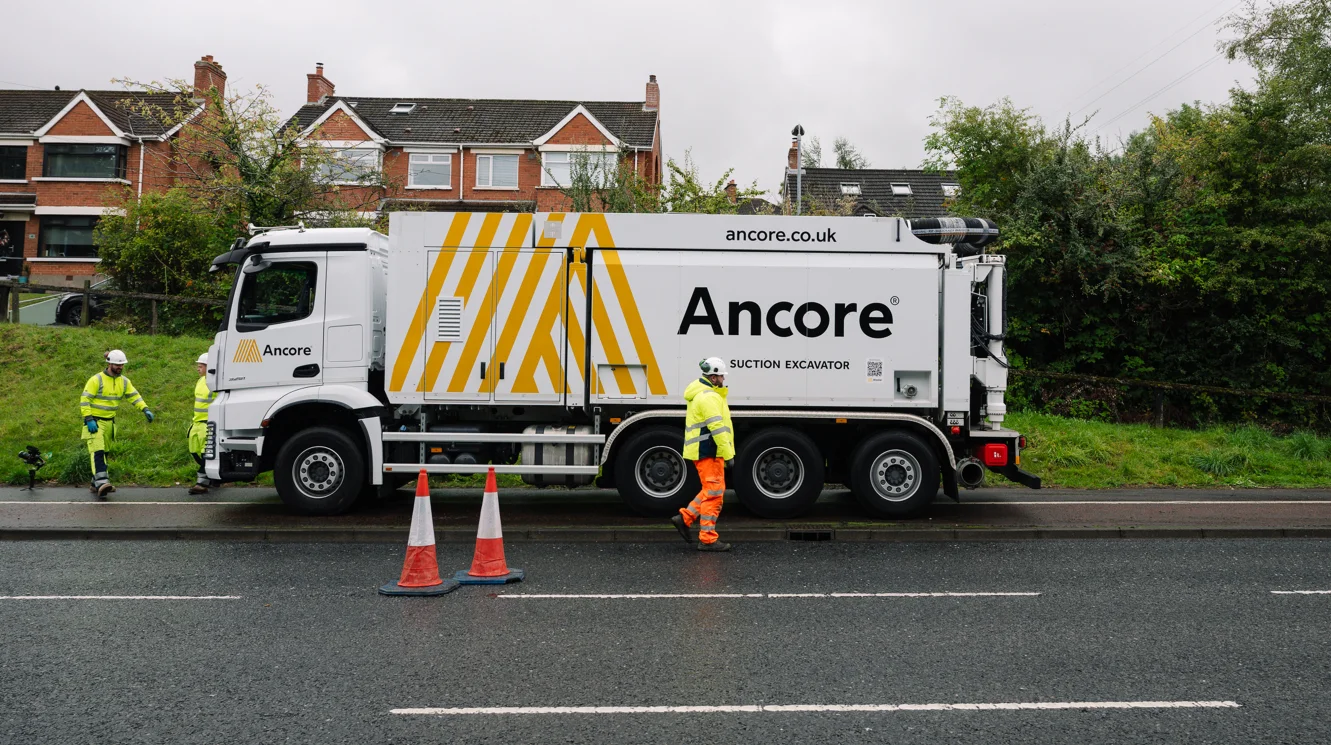

Ancore suction excavators are engineered to handle demanding excavation work day after day. Their powerful suction capability effortlessly removes heavy, compacted and abrasive materials, helping contractors work quicker while reducing the risk of costly damage. Perfect for small, medium and large scale projects
Suction excavation, is the safe and effective removal of debris using an onboard suction system and intake hose. Efficient and precise, a Suction Excavator minimises site disruption and excavation risks, making them perfect for sensitive work areas with limited access or underground infrastructure.
The central mounting system for the 8m³ container now includes four supports with an automatic levelling system. This enables the container to be emptied from either side. The tilting height ranges from 1.8m to 2.5m. The four stabilising support legs ensure an optimum emptying position at all times.

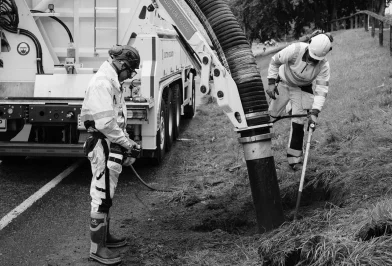

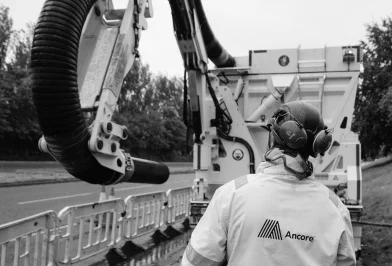

With hose carrier options of up to 6m, operators can excavate from a safe distance without the need to reposition the machine. The articulated hose carrier also has a swivel range of 180°, specifically designed with difficult site conditions in mind.
Container volume
8.0 m³
Compressor
7.5 Bar
Working reach
6.0 m
Wheelbase
4200mm
Engine
Diesel min. 230 kW/312 HP
Vehicle width
2500mm
Vehicle weight
26,000kg
Max. volume suction
42,000m³/h
Max. vacuum
40,000 Pa
Container discharge
Side tipper
Compressed air system
max. 4.5 m3/min, 7 bar
Filter system
40 cartridge filters, automatic filter cleaning system
Control system

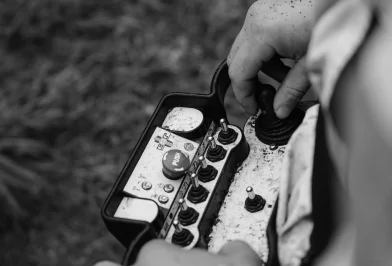

PLC and radio remote control
Hose carrier pivot
180 degrees
Hose diameter
250mm

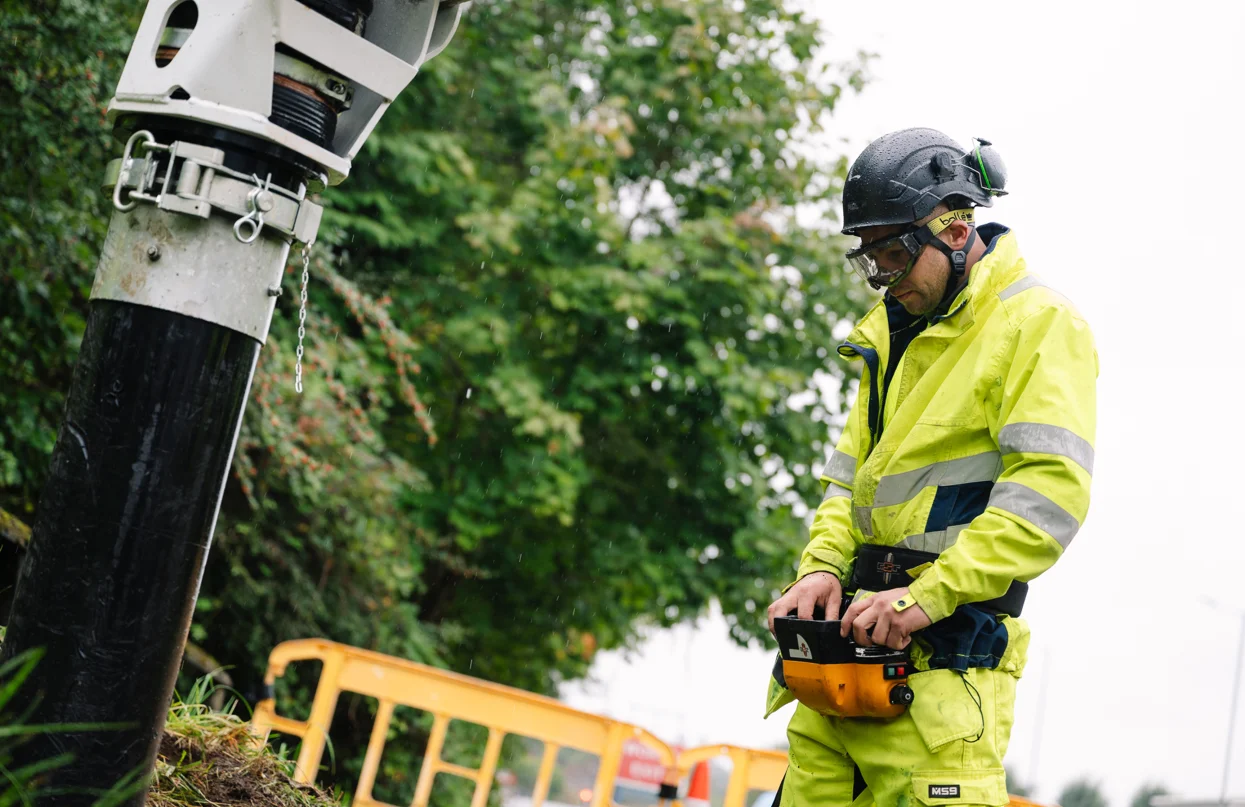

We can arrange a bespoke hire package for your site’s requirements, complete with our highly experienced and skilled operators to ensure every project is carried out safely, efficiently, and to the highest standard. By supplying both the machinery and expert operators, we take the stress out of managing specialist equipment on-site, giving you a complete all-round solution you can rely on. Whether you need short-term support or a long-term hire package, we can tailor our services to suit your site conditions, project scope, and operational requirements. Get in touch with us today to arrange the perfect hire package for your business.
